?Q20HK-900R定向耦合器

關鍵叁數

Q20HK-900R定向耦合器

頻繁：0.8 – 1 GHz交叉耦合：20dB±0.5dB朝向性：18音貝駐波比：1.3:1添加損耗量：0.25dB輸出：80瓦考評板722-0006-07-E01備貨周期公式：6-8周

品牌：Electro-Photonics

設備詳細信息說

800-1000 MHz Directional Coupler

The Q20HK-900R is a bi-directional coupler with high directivity and high power handling. Q20HK-900R is a replacement for Soshin P/N GSC302-20M0900. It is suitable for AWS, DCS, PCS, UMTS, CDMA , IMT and more…

Specifications

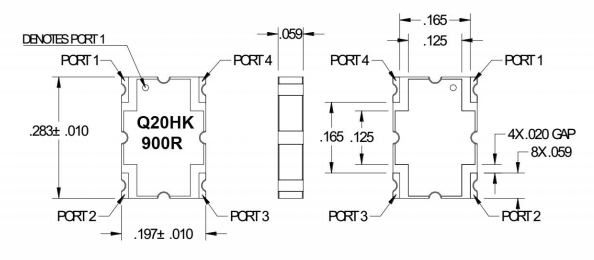

Size: 0.283 x 0.197 inches
Frequency: 0.8 – 1 GHz
Coupling: 20 dB ± 0.5 dB
Directivity: 18 dB
VSWR: 1.3:1
Insertion Loss: 0.25 dB
Power: 80 W
Evaluation board 722-0006-07-E01
