?Q30HE-900R定向耦合器

為重要性能參數

Q30HE-900R定向耦合器

規律：0.7 – 1.2 GHz藕合：30.五分貝±兩分貝交叉耦合平整度：±0.3dB定位性：18聲音分貝駐波比：1.10:1放耗用：0.1dB工作功率：355瓦評估報告格式板722-0006-05-E01定貨時期：6-8周

品牌：Electro-Photonics

服務祥情介紹英文

700-1200 MHz Directional Coupler

The Q30HE-900R is a broadband, bi-directional coupler with high directivity and high power handling. It is suitable for LTE mobile broadband, UHF television, GSM, and more…

Specifications

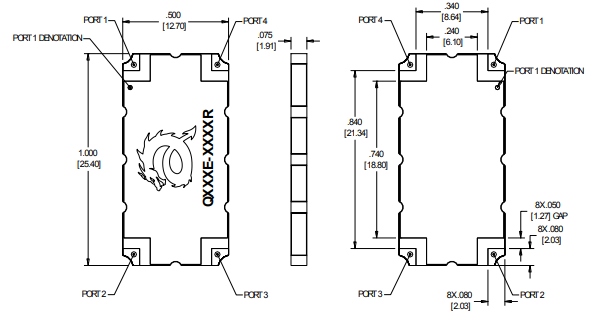

Size: 1.00 x 0.50 inches
Frequency: 0.7 – 1.2 GHz
Coupling: 30.5 dB ± 1 dB
Coupling Flatness: ± 0.3 dB
Directivity: 18 dB
VSWR: 1.10:1
Insertion Loss: 0.1 dB
Power: 355 W
Evaluation board 722-0006-05-E01
